Réparer votre SYSTEME ELECTRIQUE Pièces Origine CFMOTO CFORCE 550

spécialiste des pièces détachées CFMOTO neuves

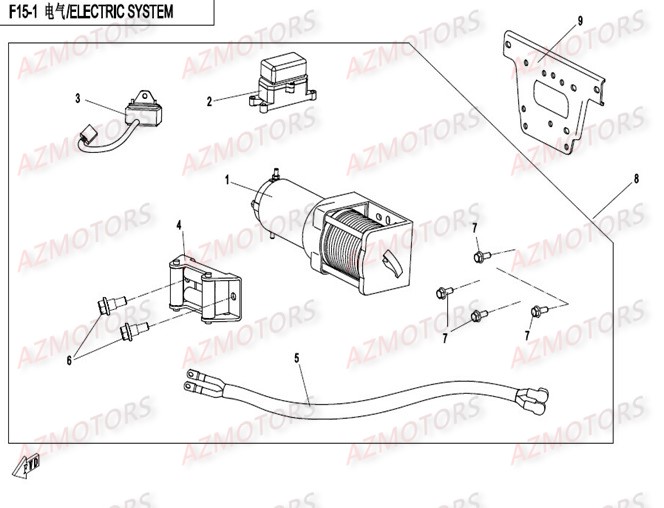

SYSTEME ELECTRIQUE Microfiche eclatée des pièces origine

SYSTEME ELECTRIQUE CFMOTO CFORCE550
Zoomer en toute simplicité ! Survolez pour zoomer, ou cliquez pour agrandir
Pièces pour l'éclaté : SYSTEME ELECTRIQUE
N° Repère Référence Pièce / Libéllé Prix TTC Unité Qté
1 Référence NC1
NON DISPO ne se détail pas
Non disponible Non disponible
2 Référence 7020-150720-00001
BOITIER DE FUSIBLES
114,16 € H.T 136,99 €
Quantité sur schéma : 2
3 Référence 7020-150710-1000
CONTROL SWITCH,WINCH
51,21 € H.T 61,45 €
4 Référence NC2
PULLEY CABLE ne se détail pas
Non disponible Non disponible
5 Référence NC3
CABLE, WINCH ne se détail pas
Non disponible Non disponible
6 Référence 30004-100025810
BOULON M10X25
0,64 € H.T 0,77 €
Quantité sur schéma : 2
7 Référence 5HY0-220009
BOULON M8X20
5,23 € H.T 6,28 €
Quantité sur schéma : 4
8 Référence 9CR6-150700-10000
WINCH ASSY
670,56 € H.T 804,67 €
9 Référence 7020-406001
BGRILLEET, WINCH
28,56 € H.T 34,27 €
